USB Data Cables

USB or Data Cables are those essential links between our devices and power, go through a complex series of steps before reaching store shelves. The manufacturing process can be intricate as every cable strand must be aligned precisely.

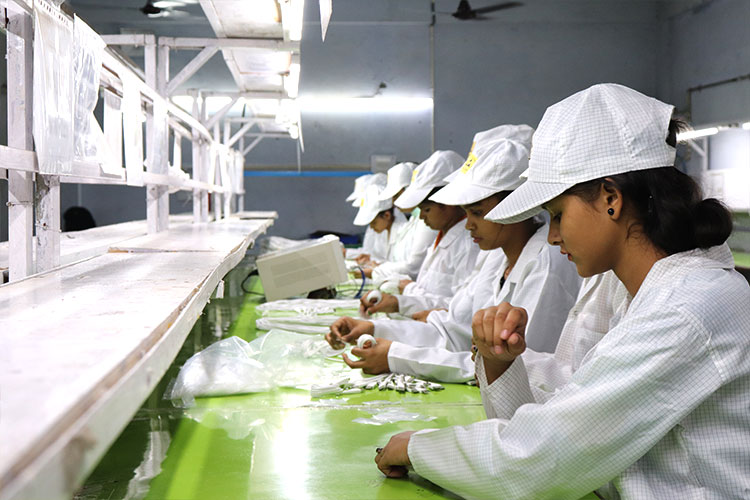

The process starts with raw materials – copper or aluminum wires are drawn thin and annealed for flexibility. Meanwhile, other components like foil and braid are produced for shielding against electromagnetic interference. The individual wires, foil, and braid are precisely assembled and jacketed with an insulating material. The metal connectors are meticulously manufactured in different facilities to ensure proper data and power transfer pin configuration. The cable jacket is stripped at both ends, exposing the inner wires. The connection point between the cable and connector is encased in a molded plastic housing for strain relief and durability. This step can involve multiple molds for internal and external shaping.

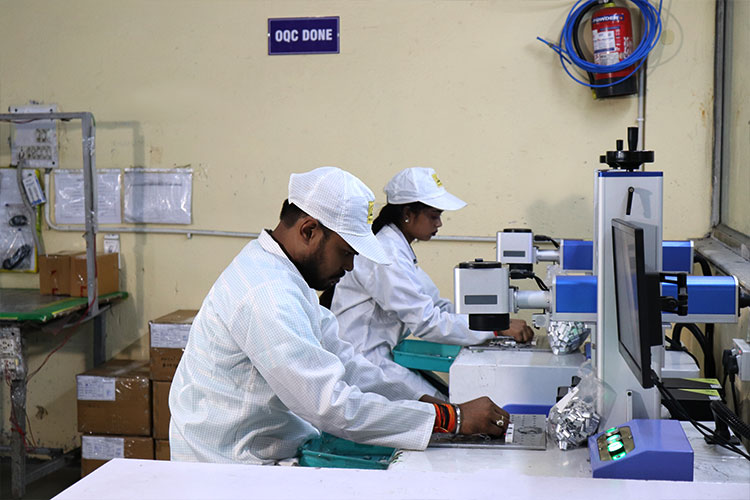

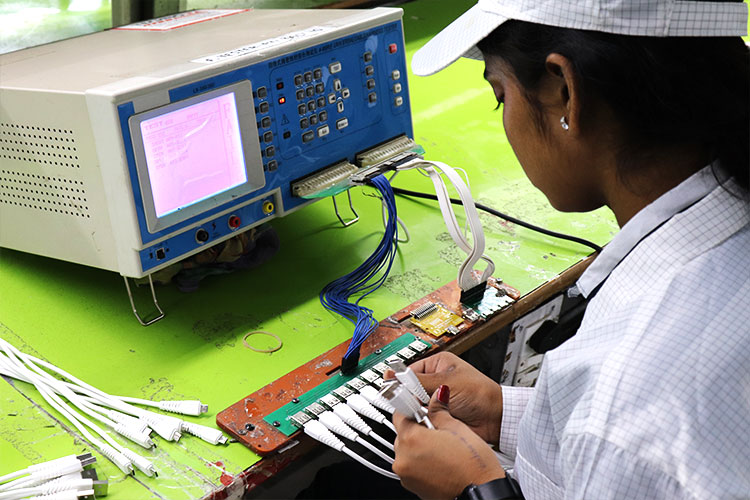

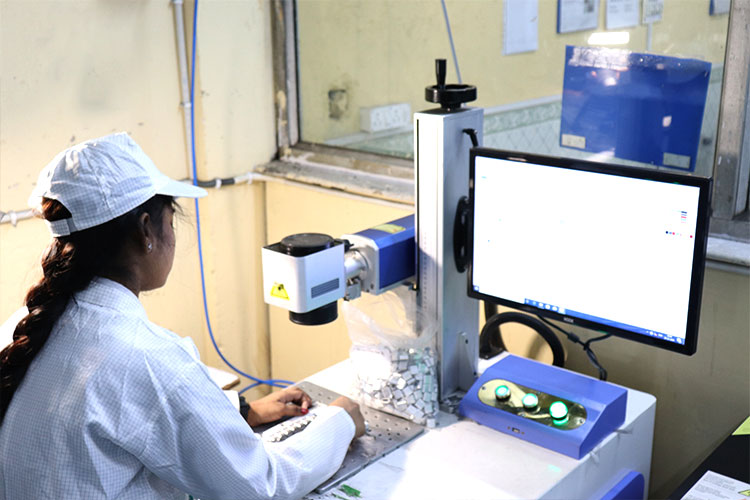

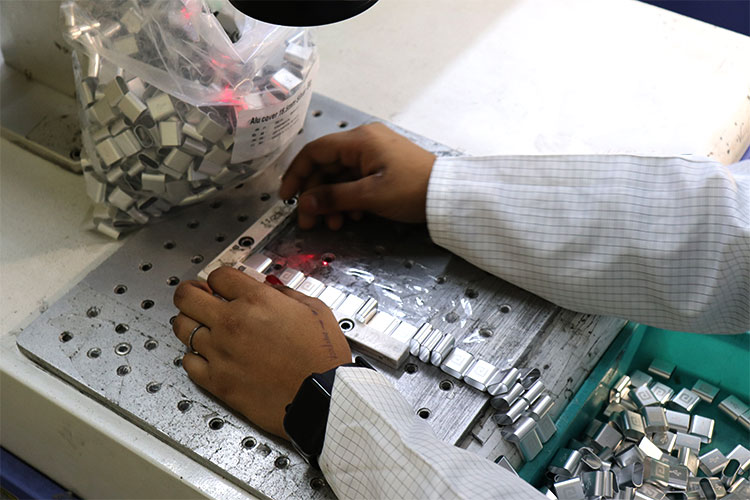

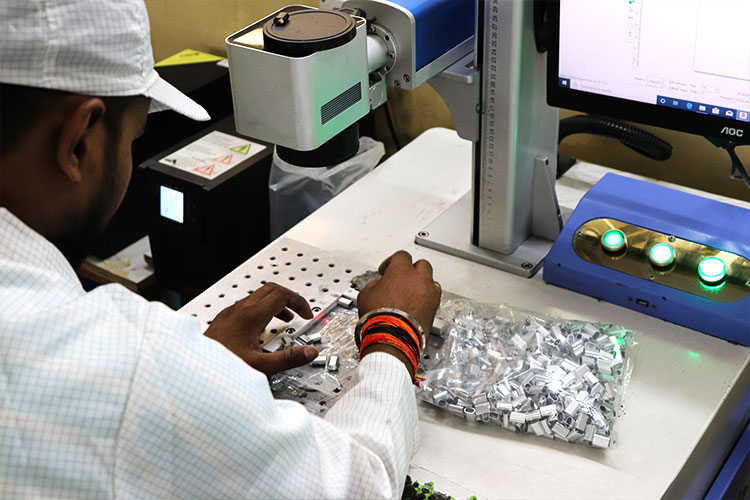

Lastly, every cable undergoes rigorous electrical testing to ensure top-notch functionalities and adherence to safety measures. Depending on the manufacturer, the finished cables might receive logos or branding before being packaged and shipped.
